概述 Introduction:

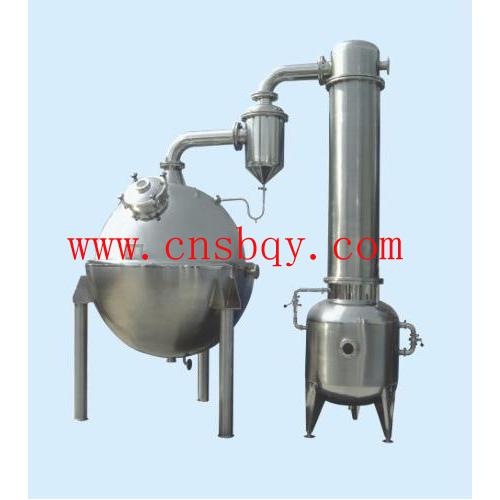

球形浓缩罐主要由浓缩罐主体、冷凝器、汽液分离器、受液桶四个部分组成，可用于制药、食品、化工等行业对料液的浓缩、蒸馏及有机溶媒的回收工艺。由于采用减压浓缩，故浓缩时间短，且不会破坏热敏性物料的有效成分。本设备与物料接触部分均采用不锈钢制造，具有良好的耐腐蚀性能，经久耐用，并符合GMP标准。
The circular concentration can, consisting of four parts of can body, condenser, gas-liquid separator and liquid receiving barrel, is available to concentrate and distill the material liquid in such industries as pharmacy, food and chemistry and recycle the organic menstruum. The adoption of reduced pressure concentration shortens the time for concentration, avoiding the destruction to effective component inside the thermal sensitive material. The contact part of the concentrator and the material is made with the stainless steel, resistan to corrosion and high durable, meeting the standard of the GMP.
技术参数Technical Parameter：
|
规格Model
|
QN-300
|
QN-500
|
QN-700
|
QN-1000
|
|
蒸发量Evaporation Capacity (kg/h)
|
70
|
120
|
145
|
195
|
|
公升容积Volume (L)
|
300
|
500
|
700
|
1000
|
|
球罐内径Ball Tank Diameter (mm)
|
800
|
990
|
1115
|
1250
|
|
蒸汽压力Steam Pressure (Mpa)
|
0.09
|
|
真空度Vacuum Level
|
500~620mmHg
|
|
耗汽Steam Consumption (kg/h)
|
77
|
132
|
159
|
214
|
|
加热面积Heating Area（m2）
|
1.1
|
1.6
|
2.7
|
3.1
|
|
冷凝面积Condensation Area (m2)
|
3.0
|
4.0
|
5.0
|
10.0
|
|
外形尺寸Measurement
|
1900×1100×2300
|
2030×1200×2500
|
2100×1300×2500
|
2335×1520×765
|
|
设备重量Weight (kg)
|
380
|
450
|
630
|
950
|
